Universal Stringing Block for Crossarm Installation | 10KN Conductor Pulley

1개
MOQ
negotiable
가격
Universal Stringing Block for Crossarm Installation | 10KN Conductor Pulley
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
이름: 범용 스트링 블록
시브 직경: 178X76mm(178X76mm)
정격 부하: 10KN
무게: 4.3kg
키: 95-159mm
캘리퍼스 무게: 1.6kg
강조하다:

10KN conductor stringing block

,

universal crossarm installation pulley

,

heavy-duty conductor stringing tool
기본 정보
원래 장소: 닝보
브랜드 이름: Suntech
인증: ISO
모델 번호: 만능인
결제 및 배송 조건
포장 세부 사항: 합판 케이스
배달 시간: 3~7일
지불 조건: T/T,L/C
공급 능력: 500 PC/월
제품 설명

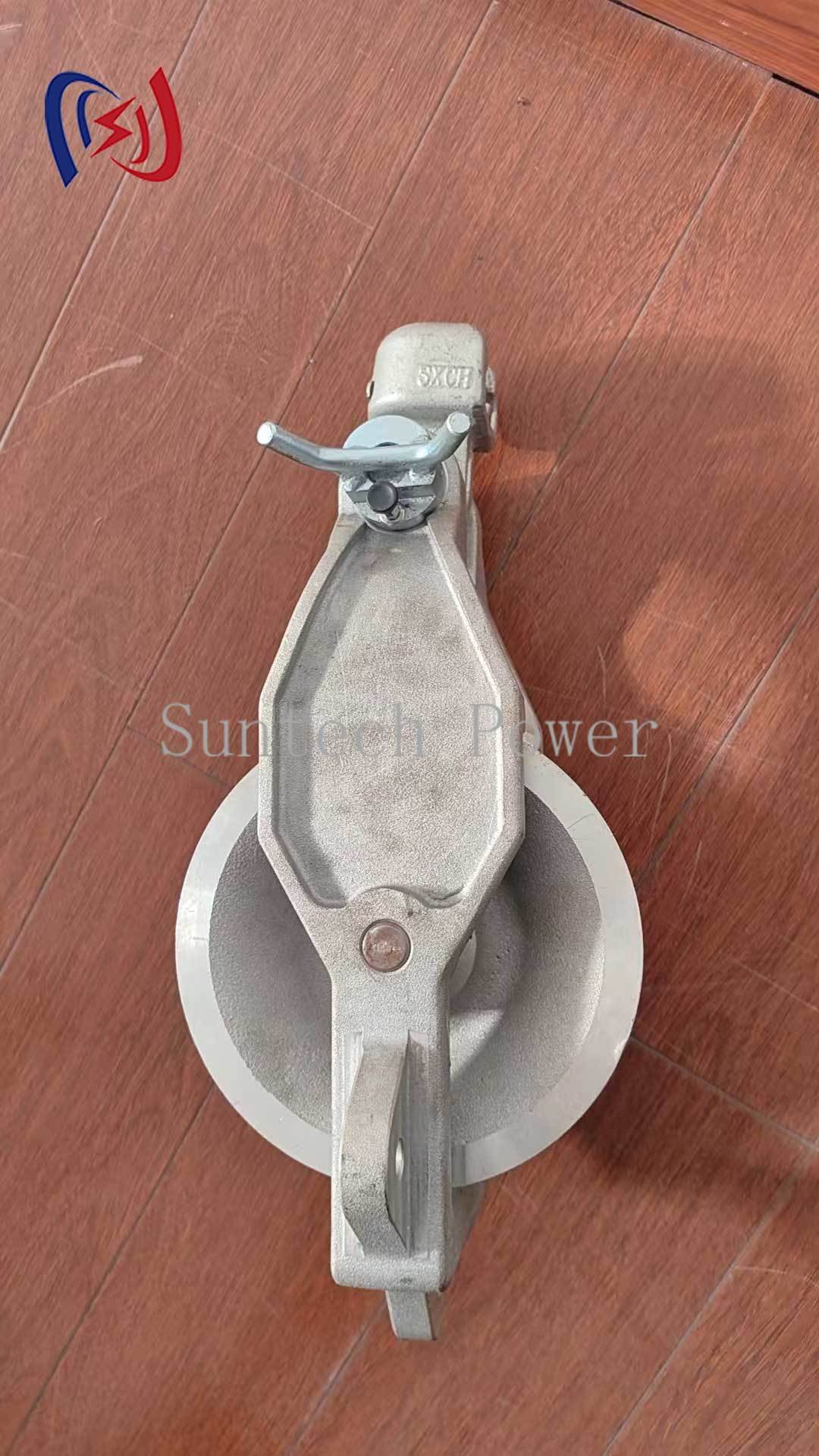

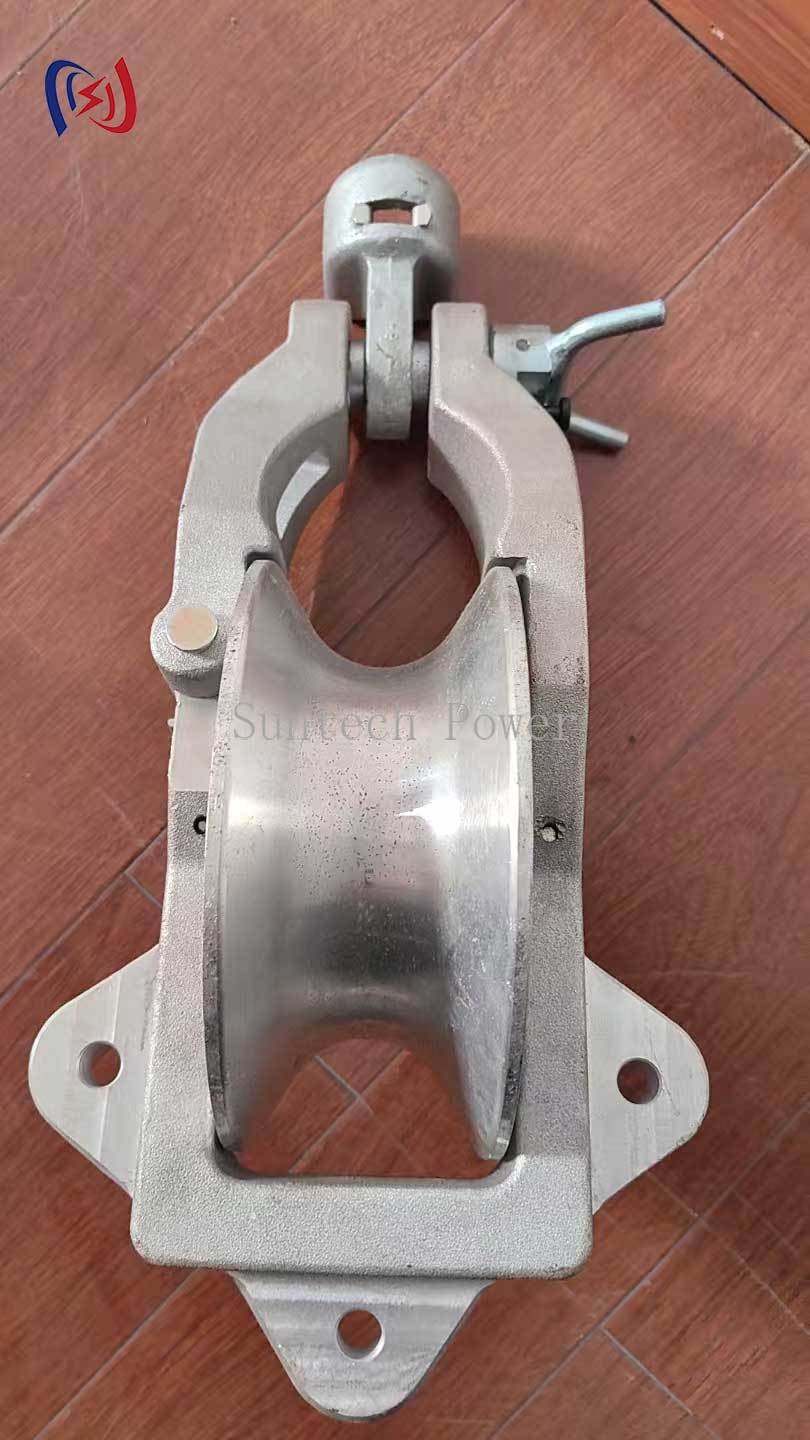

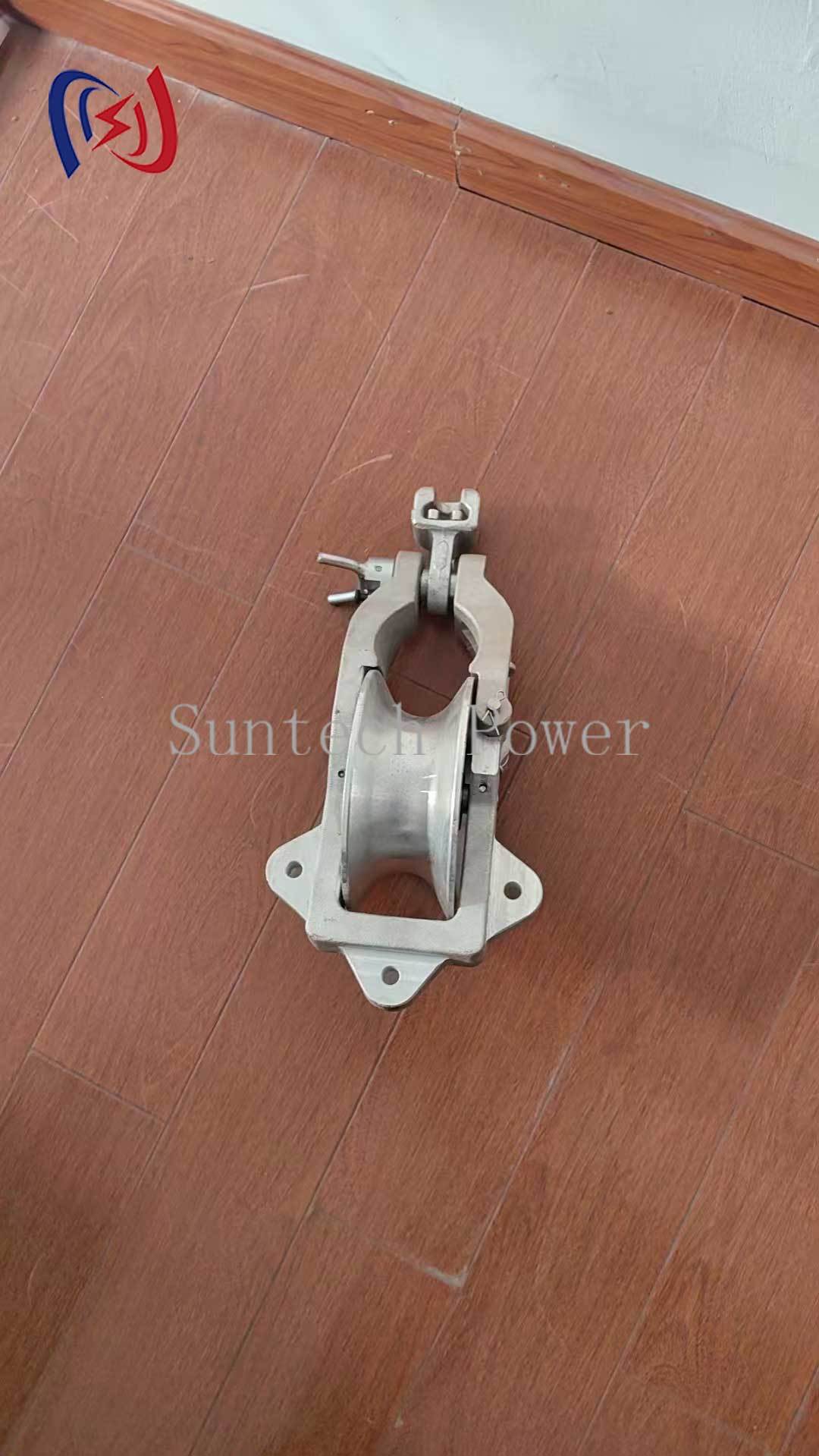

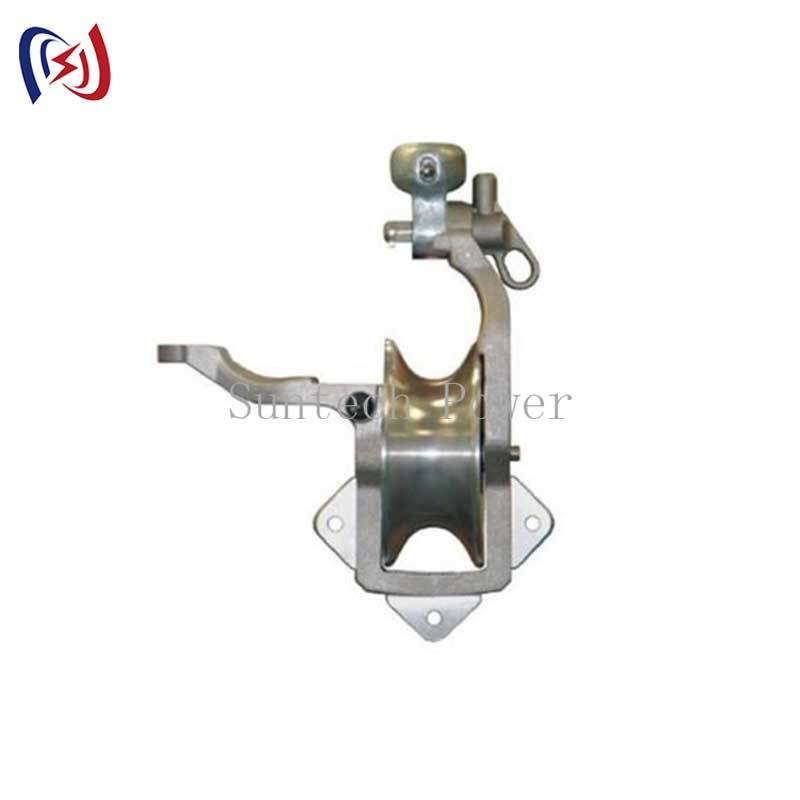

Universal Stringing Block for Crossarm Installation | 10KN Conductor Pulley
Product Overview
The Universal Stringing Block is designed for overhead transmission line construction and conductor stringing work. It can be used at the head of an insulator string or fixed on the caliper of a crossarm, providing a flexible guiding solution for conductor installation.
This model has a 10KN rated load, Φ 178 × 76mm sheave, and a total block weight of 4.3kg. It is suitable for crossarm widths from 99mm to 175mm, with an installation height range of 95mm to 159mm. The caliper weighs 1.6kg, making the product practical for field installation and adjustment.
Technical Specifications
Item Number Rated Load Sheave Diameter Weight Applicable Crossarm Width Height Caliper Weight
10295 10KN Φ178 × 76mm 4.3kg 99-175mm 95-159mm 1.6kg
Product Details
Product Name Universal Stringing Block
Model 178 × 76
Rated Load 10KN
Sheave Size Φ178 × 76mm
Weight 4.3kg
Applicable Crossarm Width 99-175mm
Height Range 95-159mm
Caliper Weight 1.6kg
Certification ISO9001
Packaging Wooden Case
Warranty 1 Year
Main Use Used at the head of an insulator string or fixed on the caliper of a crossarm
Typical Application Overhead transmission line construction and conductor stringing
Application Areas
The Universal Stringing Block is suitable for:
  • Overhead transmission line construction
  • Conductor stringing work
  • Crossarm-mounted conductor guiding
  • Insulator string head installation
  • Power line installation
  • Electric power construction
  • Utility line maintenance
  • Grid construction projects
  • Field conductor guiding and positioning
It is commonly used where a conductor needs to be guided from a crossarm or insulator string position during overhead line construction.
Product Advantages
  • Universal Mounting for Two Installation Positions: This product can be used either at the head of an insulator string or fixed on the crossarm caliper, making it suitable for different field installation methods.
  • 10KN Rated Load for Power Line Construction: The 10KN rated load supports conductor stringing and guiding applications in overhead transmission line construction.
  • Φ178 × 76mm Sheave for Conductor Guiding: The Φ178 × 76mm sheave provides a defined guiding path for conductor stringing work.
  • Adjustable Crossarm Width Range: The product fits crossarm widths from 99mm to 175mm, supporting installation on different crossarm structures.
  • Practical Installation Height Range: The height range of 95mm to 159mm helps adapt the block to different mounting positions during site operation.
  • Lightweight Block for Field Handling: With a block weight of 4.3kg and a caliper weight of 1.6kg, the product is convenient for transport, positioning, and installation in utility construction projects.
Related Keywords
Universal Stringing Block, Universal Stringing Pulley, Conductor Stringing Block, 10KN Stringing Pulley, Crossarm Mounted Stringing Block, Insulator String Pulley, Transmission Line Stringing Block, Overhead Conductor Pulley, Electric Power Construction Pulley, Utility Stringing Tool
Frequently Asked Questions
What is a Universal Stringing Block used for?
It is used for conductor stringing and guiding during overhead transmission line construction. It can be installed at the head of an insulator string or fixed on a crossarm caliper.
What is the rated load of this product?
The rated load is 10KN.
What is the sheave size?
The sheave size is Φ 178 × 76mm.
What crossarm width is this product suitable for?
It is suitable for crossarm widths from 99mm to 175mm.
What is the installation height range?
The height range is 95mm to 159mm.
What is the product weight?
The block weighs 4.3kg, and the caliper weighs 1.6kg.
Is this product suitable for transmission line construction?
Yes. It is suitable for overhead transmission line construction, conductor stringing, crossarm installation, and utility power line projects.
