Professional Cable Pulling Winch for High Tension Installation of Underground and Aerial Power Cables with 3-5T Tractive Force

1개
MOQ
negotiable
가격
Professional Cable Pulling Winch for High Tension Installation of Underground and Aerial Power Cables with 3-5T Tractive Force
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
이름: 윈치를 당기는 케이블
모델: JJQ
속도: <16m/분
다루기 힘: 3-5T
힘: 4.04-6.61kW
무게: 100-230KG
강조하다:

High Tension Installation Cable Pulling Winch

,

3-5T Tractive Force Cable Winch Puller

,

Underground and Aerial Power Cables Power Cable Winch
기본 정보
원래 장소: 닝보
브랜드 이름: Suntech
인증: ISO
모델 번호: JJQ
결제 및 배송 조건
포장 세부 사항: 합판 케이스
배달 시간: 3~7일
지불 조건: 신용장, 티/티
공급 능력: 30000 PCS/월
제품 설명

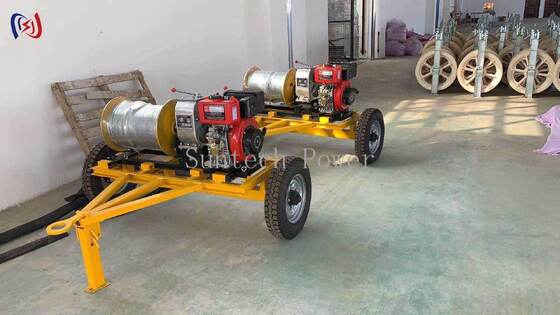

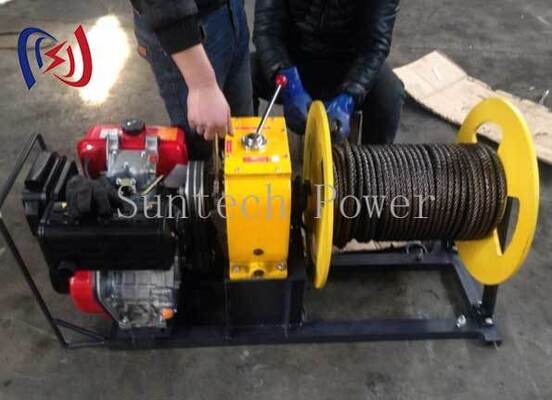

Professional Cable Pulling Winch
High-performance machine designed for controlled installation of underground and aerial power cables, fiber optic cables, and communication lines through conduits, ducts, and cable trays.
Technical Specifications
Item No. Model Rotation Direction Gear Rotational Speed (RPM) Traction Speed (M/MIN) Tractive Force (T) Power (KW) Outline (MM) Weight (KG)
08155 JJQ-30 6HP Gasoline Engine Corotation I Slow 9.0 4.0 3.0 4.04 1000*500*560 100
Corotation Ⅱ Fast 16.0 6.6 1.8
Reversal Reverse Gear 7.5 3.3 No Lifting
08156 JJQ-50 9HP Gasoline Engine Corotation I Slow 6.5 4.0 5.0 6.61 1400*510*650 150
Corotation Ⅱ Fast 16.0 9.0 2.2
Reversal Reverse Gear 7.0 4.0 No Lifting
Key Features & Benefits
  • Smooth, Controlled Pulling Force: Prevents cable damage with gradual tension application and steady speed control
  • Long Distance Capability: Handles complex installations through multiple bends and congested conduits
  • Enhanced Worksite Safety: Eliminates manual pulling hazards with remote control operation options
  • Increased Productivity: Completes cable pulls in minutes instead of hours, reducing labor costs
  • Precise Tension Control: Ensures optimal cable placement and code-compliant installations
  • Versatile Application: Suitable for various cable types including power, control, and fiber optic cables
  • Durable Construction: Built for demanding job site conditions with sealed, heavy-duty components
  • Reduced Physical Strain: Allows crews to focus on technical aspects rather than brute-force labor
  • Professional Grade Equipment: Essential tool for electrical contractors and utility companies
  • Rapid ROI: Pays for itself through labor savings, reduced cable damage, and project efficiency
Professional Applications
This cable pulling winch is indispensable for electrical contractors, utility companies, and telecommunication installers working on underground conduit systems, aerial installations, industrial powerhouses, and complex cable tray networks. It represents the engineered solution for moving cable with precise mechanical force, replacing hazardous manual effort with controlled, reliable performance.
