High Tensile Steel Conductor Mesh Sock Joints for Uniform Pressure Distribution and Temporary Dead-End Applications

1개

MOQ

negotiable

가격

풍모 갤러리 제품 설명 따옴표를 요구하십시오

풍모

제품 사양

이름: 선도망 턱관절

모델: SLW

ACSR: 70-1250

정격 부하: 15~120KN

파손로드: 30-250KN

보증: 1년

강조하다:

High Tensile Steel Mesh Sock Joints

Uniform Pressure Distribution Conductor Gripping Sleeves

Temporary Dead-End Mesh Sock Joints

기본 정보

원래 장소: 닝보

브랜드 이름: Suntech

인증: ISO

모델 번호: SLW

결제 및 배송 조건

포장 세부 사항: 합판 케이스

배달 시간: 3~7일

지불 조건: 신용장, 티/티

공급 능력: 30000 PCS/월

갤러리

High Tensile Steel Conductor Mesh Sock Joints for Uniform Pressure Distribution and Temporary Dead-End Applications

제품 설명

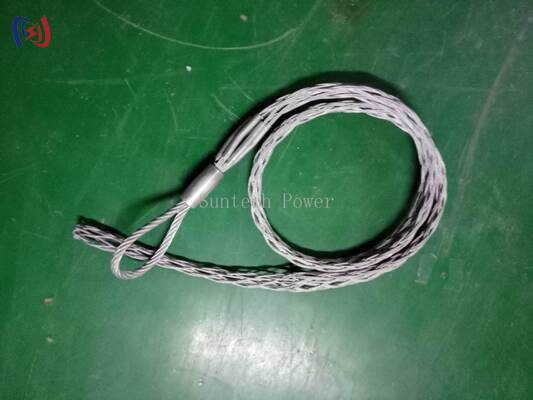

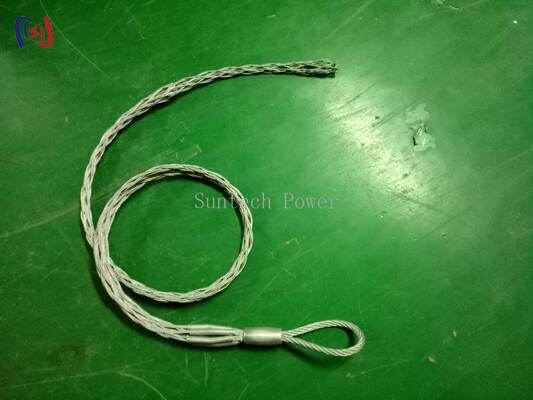

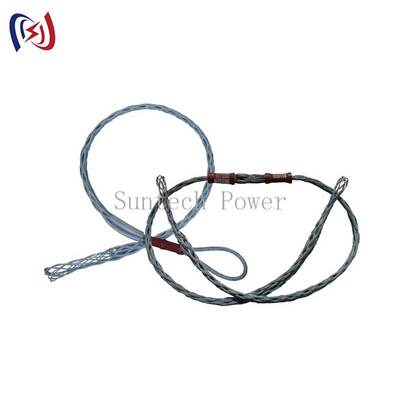

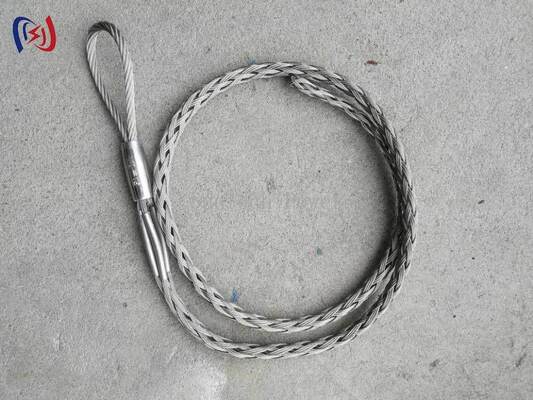

Professional Conductor Mesh Sock Joints

Specialized temporary gripping devices for safe handling, tensioning, and pulling of bare overhead conductors including ACSR (Aluminum Conductor Steel Reinforced) and AAAC (All Aluminum Alloy Conductor).

Product Specifications

Single Head Item #	Double Head Item #	Model	Applicable Conductor (ACSR)	Rated Load (KN)
17161	17181	SLW(S)-1.5	ACSR70-95	15
17162	17182	SLW(S)-2	ACSR120-150	20
17163	17183	SLW(S)-2.5	ACSR185-240	25
17164	17184	SLW(S)-3	ACSR300-400	30
17165	17185	SLW(S)-4	ACSR500-600	40
17166	17186	SLW(S)-5	ACSR720	50
17167	17187	SLW(S)-7	ACSR900	70
17168	17188	SLW(S)-8	ACSR1000-1120	80
17169	17189	SLW(S)-12	ACSR1250	120

Key Features and Benefits

Secure High-Strength Temporary Grip: Creates reliable termination points capable of withstanding full pulling or tensioning forces without slipping.
Conductor Protection: Distributes gripping force evenly to prevent crushing, notching, and damage to conductor strands.
Pulling Eye Formation: Enables creation of secure loops and eyes for attachment to pulling lines and winch hooks.
Temporary Dead-End Function: Serves as provisional dead-end clamps during construction and repair operations.
Efficient Conductor Stringing: Smooth profile allows easy passage through stringing blocks and tensioners for continuous pulling.
Wide Conductor Compatibility: Available in various sizes to accommodate different conductor diameters from distribution to transmission voltages.
Durable and Reusable: Constructed from galvanized high-carbon or stainless steel wire for multiple uses.
Splicing and Repair Support: Simplifies complex operations by holding conductor ends in alignment under tension.
Live Line Work Compatibility: Provides secure attachment points for barehand method live line work.
Industry Standard Tool: Proven best practice for professional overhead line installation and maintenance.

Conductor Mesh Sock Joints provide a simple yet highly effective solution for applying massive force to conductors without causing damage. These tools serve as powerful, protective interfaces between conductors and installation equipment, enabling secure grips, safe pulls, and temporary terminations that contribute to the quality and longevity of electrical grid infrastructure.
