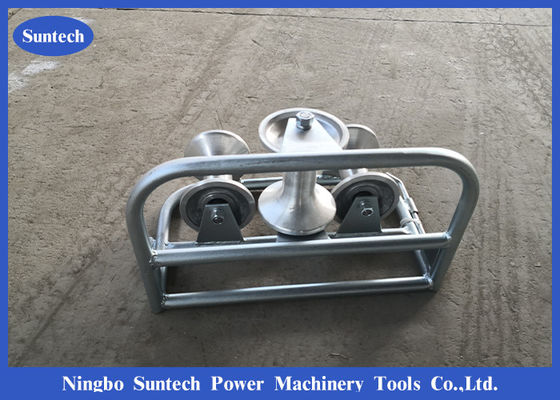

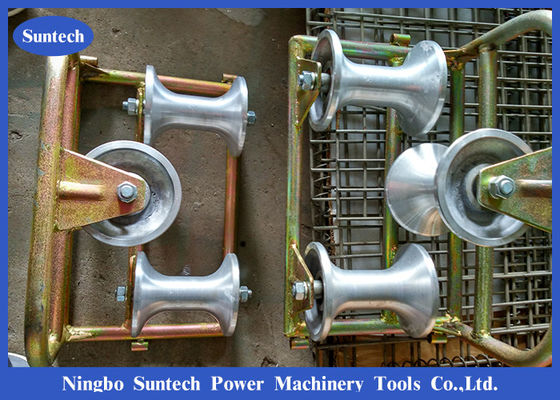

Triple Corner Ground Cable Roller Pulling Roller with Aluminum Alloy Wheels
1.The Cable Rollers that are available from LS are specifically designed for either Trench or Duct applications.
Trench rollers are lightweight, for narrower applications, designed to lay on the ground and protect the cable from the surface..
2.Duct rollers are designed to be placed at the entrance to a duct so the cable is protected from the rim and corner, to ease the cable in and avoid damage.Depending on your application you may want to consider multiple Cable Rollers.
3.To discuss your application needs with an expert or for the best available prices, feel free to call our team or get in touch via our Contact Form. We are always more than happy to help.
Triple Corner Ground Cable Roller Pulling Roller with Aluminum Alloy Wheels Feature:
• Heavy duty corner roller from tubular sections
• 3off 140mm Diameter Large Waisted Aluminm Rollers
• Sealed roller bearing fitted
• Zinc Plated Finish
• Universal link pin mount positions
• Size 53cms Long x 30cms Wide x 30cms High
• Weight 12 Kg
Technical Data
| triple corner cable roller | ||||
| Model | Rated Load(KN) | Structure | Weight(Kg) | |
| Aluminum roller | Nylon roller | |||
| HB-1 | 10 | three rollers; steel tube frame | 12.4 | 12.0 |
We also have the other sizes of this type roller, it can be said customized. Pls freely ask us.
